mCam101&Backends

$200.00$400.00

Quantity Discount (%) Price
1 - 9 $200.00
10 - 99 20 % $160.00
100+ 50 % $100.00

Description



Note:The price is for samples. If you buy more than 10 pcs, please contact us.

mCam101L2

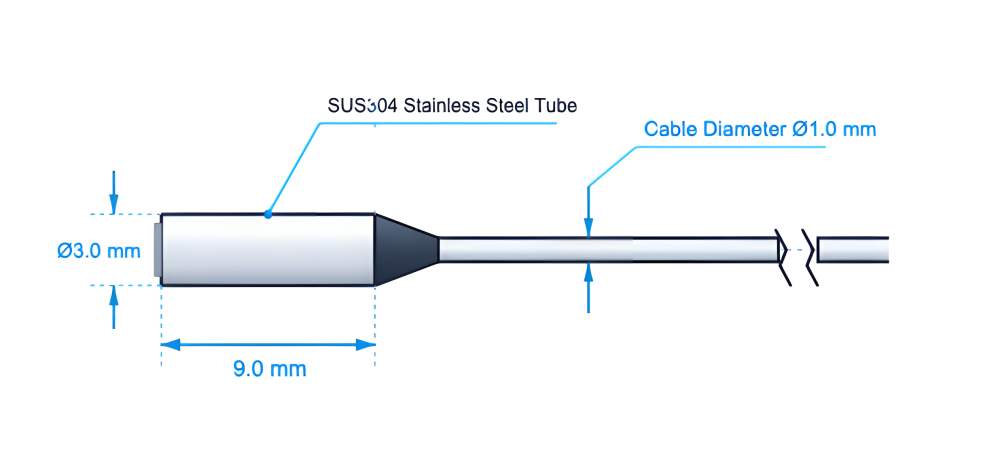

mCam101L2 is a 1/9″ color 1Mega pixels camera for the rapidly growing disposable medical endoscope market. It is small in size and high resolution, an ideal upgrade for bronchoscopes, ureteroscopes and hysteroscopes. With 1000 x 1000 resolution at 60 frames per second, it provides the best image quality for improved patient outcomes.

It adopts innovative architecture to support high frame rate, sensor support full frame mode ,skip mode,binning mode and other formats output, compatible with lvds and mipi image output mode, to meet the needs of more programs.



C8209ML

C8209ML is a USB module, compatible with mCam101L2 and mCam703L2 cameras, with integrated LED brightness control circuit on board, automatically detects the sensor type and outputs video to the computer, no driver installation is required. Users can control C8209 board thru UVC extension unit, like calibrating white balance, enable/disable osd mask,adjusting LED brightness.



C8203ML

This module is designed for mCam101L2 and mCam703L2. It outputs live video to an HDMI monitor, supports photo snapshot and video recording, and stores files to an SD card. These modules are powered by 12V DC.

Features

  • Real-time 1280×720@60fps video output to HDMI
  • Auto sensor detection
  • Simple operation for auto white balance
  • AVI recording and JPG snapshot
  • Store to SD card, up to 32G
  • Adjust image quality
  • RTC with battery backup
  • Constant current driver for external power LED
  • Built-in LED brightness control circuit for optimal image
  • DC12V power supply (up to 18V)
  • Individual GPIO for key input



Additional information

Weight N/A
Dimensions N/A
Model

C8203ML+mCam101L2, C8209ML+muC101L2, mCam101L2

Camera cable length

1M, 2M, 3M

Datasheet
